AGM Global Vision NVG-40 3AL1 Night Vision Binocular Black 1x27mm Gen 3 Auto-Gated Level 1 Green Filter

AGM Global Vision NVG-40 3AL1 Night Vision Binocular Black 1x27mm Gen 3 Auto-Gated Level 1 Green Filter
$6,599.99

Temporarily Out of Stock

Includes FLAT RATE Shipping
Ships free when purchased with a firearm

Product Description

What's in the Box

  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Demist Shield (2)
  • Sacrificial Window
  • Soft Carrying Case
  • Lens Tissue
  • Packing Box
  • Battery Adapter
  • User Manual

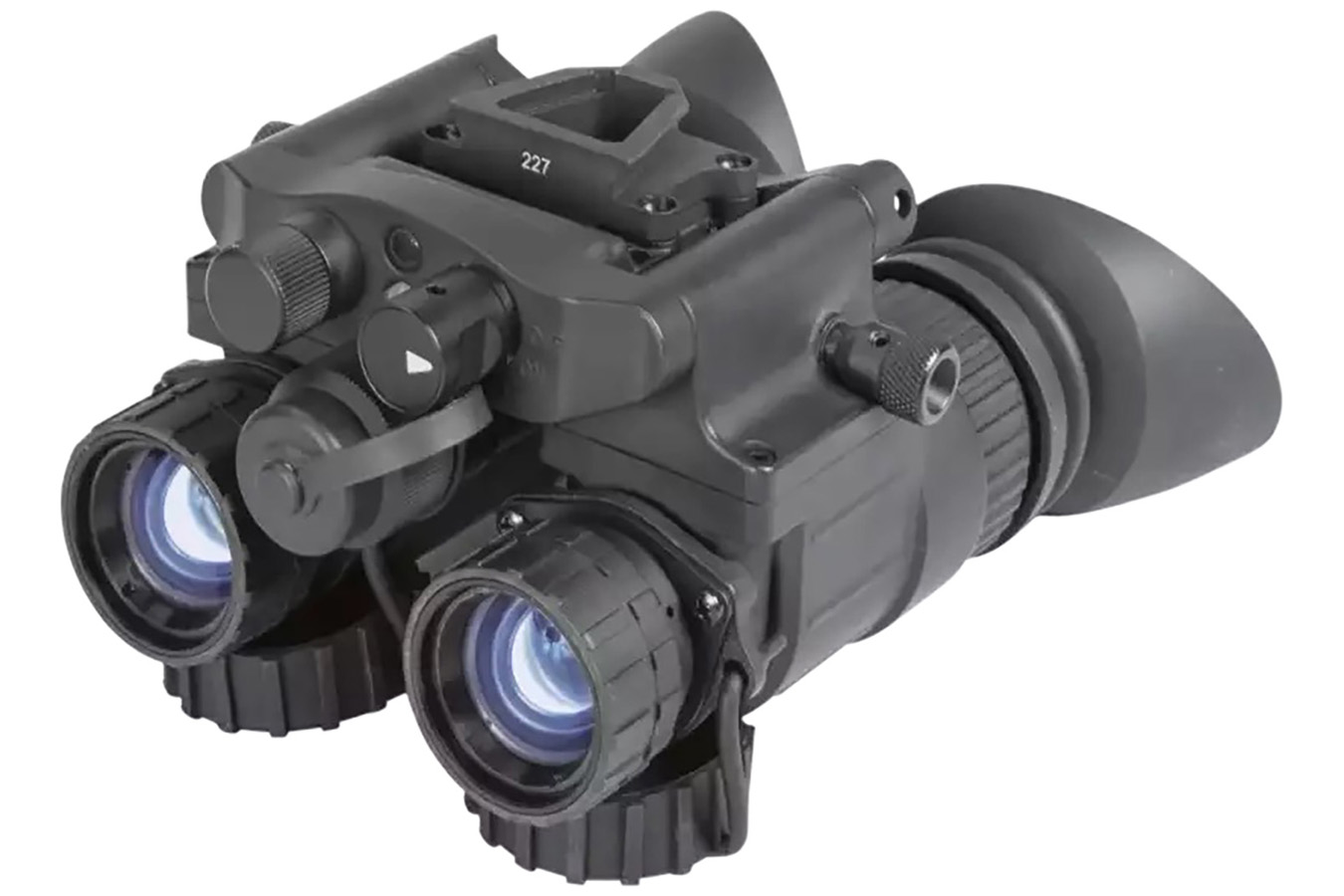

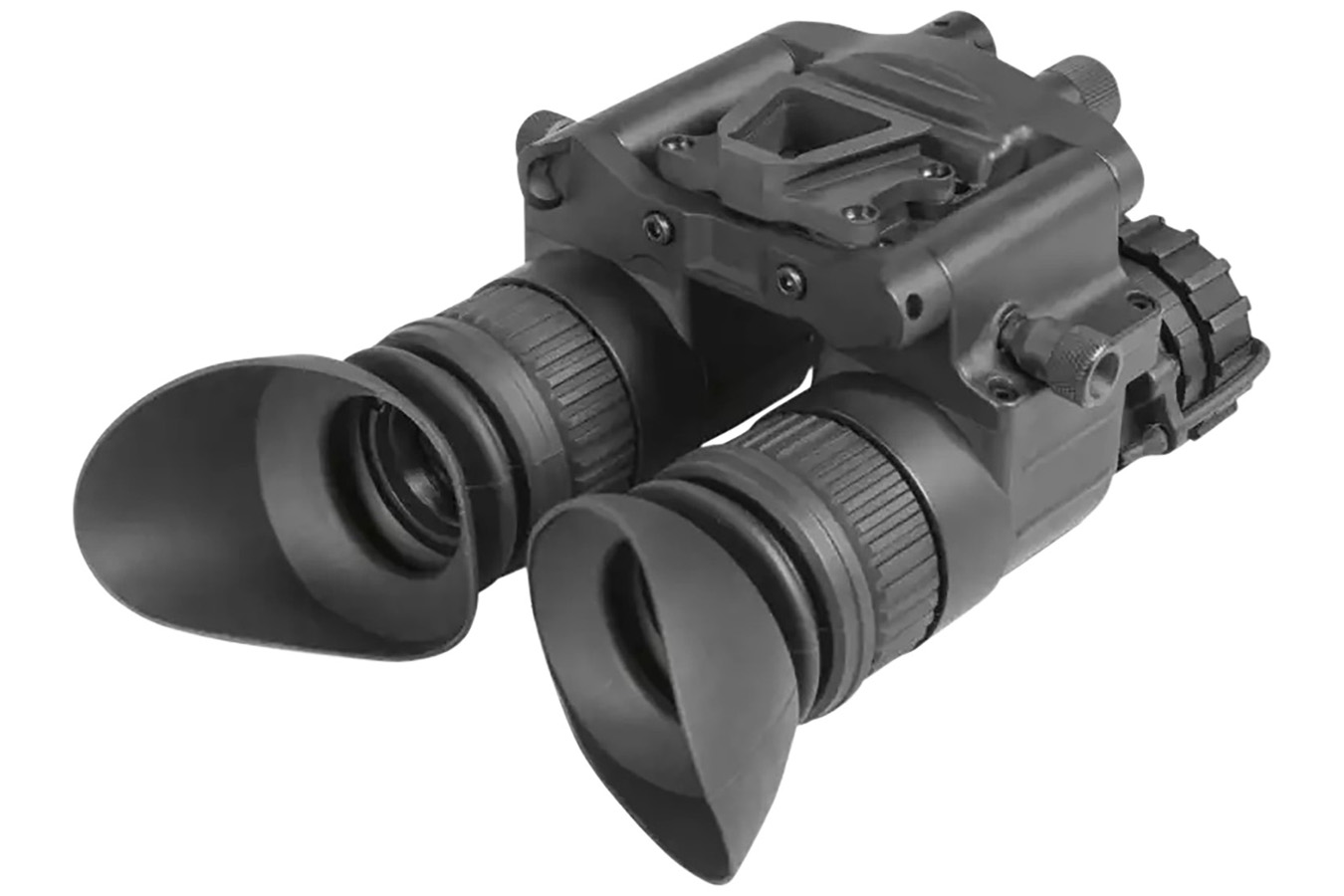

The AGM NVG-40 is a dual-channel night vision system. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual

Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

Product Features

  • NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
  • Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
  • NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
  • Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Waterproof

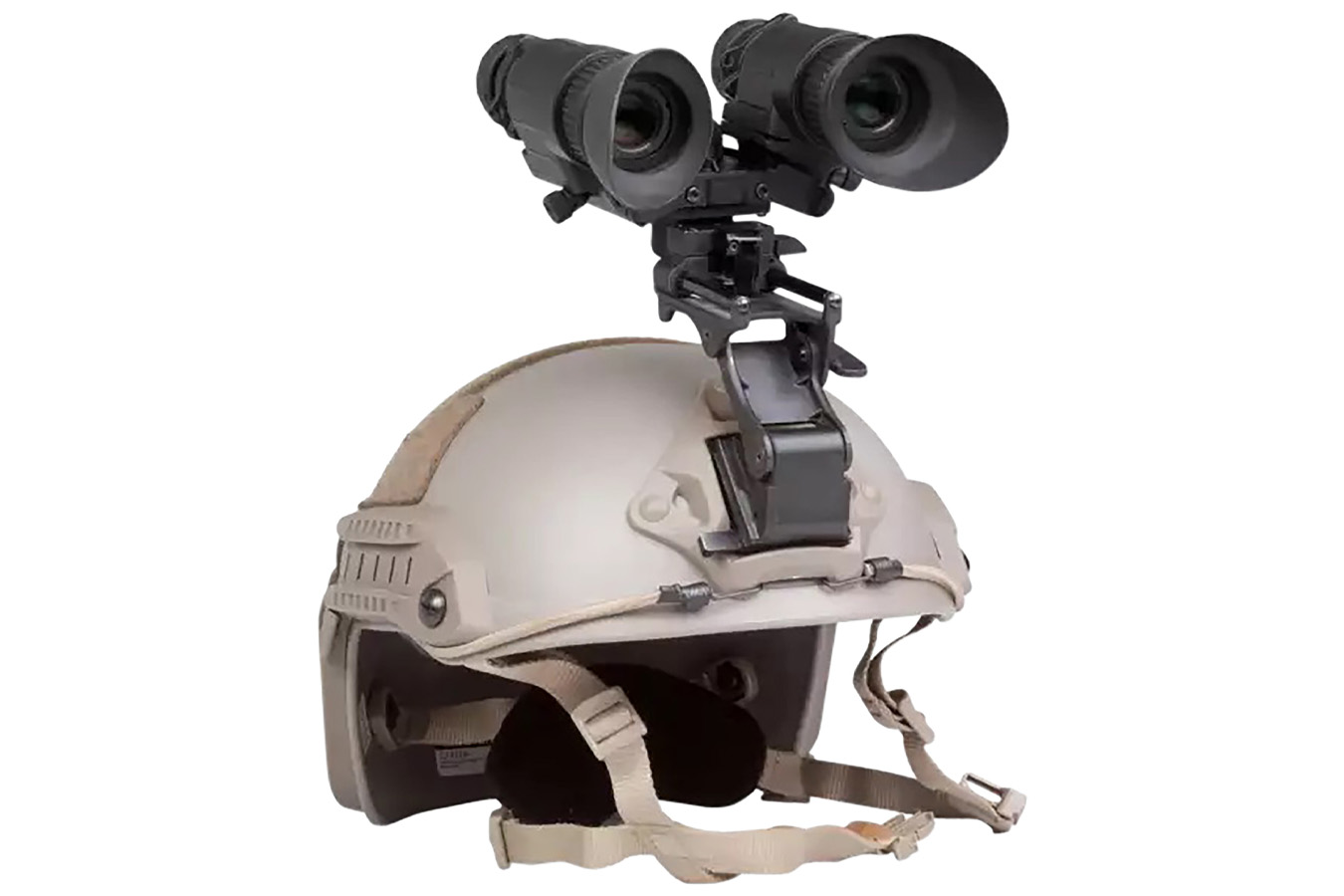

  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • 3-Year warranty

Product Specifications

  • Image Intensifier Tube: Gen 3 Auto-Gated "Level 1"
  • Resolution: 64-72 lp/mm
  • Field of view cleanness by zone: Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
  • Magnification: 1x
  • Lens System: 27 mm F/1.3
  • FOV: 40°
  • Focus Range: 0.25 m to Infinity
  • Eye Relief: 25 mm
  • Diopter Adjustment: -6 to +2 dpt
  • Led Indicators: Low Battery IR On Excessive Light Conditions
  • Infrared Illuminator: Yes
  • Manual Gain Control: Yes
  • Bright Light Cut-Off: Yes
  • Automatic Shut-Off System: Yes
  • Battery Type: One CR123A (3V) or AA (1.5 V)
  • Battery Life (Operating): Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
  • Waterproof: Yes
  • Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
  • Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
  • Weight: 645 g (1.42 lbs)
  • Overall Dimensions: 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
